PIONEER Air Conditioner WYS012GMFI22RL Wall Mount Ductless Inverter+ Mini Split Heat Pump, 12000 BTU-208/230 V, White


PIONEER Air Conditioner WYS012GMFI22RL Wall Mount Ductless Inverter+ Mini Split Heat Pump, 12000 BTU-208/230 V, White



Brand
Pioneer
Model Name
Pioneer Mini Split
Special Feature
Ductless
Seasonal Energy Efficiency Ratio (SEER)
20
Color
White
Item Dimensions LxWxH
31.5 x 13.2 x 21.7 inches
Item Weight
18 Pounds
Control Method
Remote
Energy Star
1 Star
Voltage
230 Volts

About this item

  • Ultra high efficiency inverter++ ductless mini split heat pump system
  • Product size – 13.2” D x 31.5” W x 21.7” H | Weight – 88 lb. | Cover area – 350-450 Sq. Ft. | BTUs Cooling & Heating – 12,000 BTU/h | Power supply – 208-230V, 60Hz | Noise level – 57.5 dB
  • Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose for easy installation
  • Intelligent on-off technology enables Pioneer products automatically  enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5W per hour which counts 80%~90% of saving
  • Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users

From the manufacturer

Pioneer Wys Series 22 Seer Inverter ++ Ductless Wall Mount Mini Spit System Set

Pioneer, ductless, heat pump, mini split, wall mount
Capacity Range: 9, 12, 18, 24 thousand BTU/h.

Voltage: 110-120 VAC for 9 and 12 models. 208-230 VAC for all Models.

  • High SEER ratings ranging between 20.5~22.8
  • High HSPF ratings ranging between 9.8~11.2
  • Refrigerant: R410a (precharged for line set lengths between 10'~25'
  • Permanent washable air filters, plus variety of other enhanced filter options.
pioneer, minisplit, mini split, ductless, inverter, heatpump, heat pump

Pioneer WYS Series 22 SEER Complete System Set.

All In One: Air Conditioning + Heating (Reverse Cycle Heat Pump) + Dehumidification + Ventilation

Built with latest technologies for superior efficiency, comfort and performance. WYS 22 Inverter++ product line, from 9,000 to 24,000 BTU/h for single zone residential & light commercial applications.

  • System Set Consists of: Ductless indoor unit, Outdoor unit, 16' installation kit, remote controller.
  • Indoor temperature setting range is: 62~90 F., Low heat setting (unoccupied-vacation mode) is 46F.
  • Cooling mode outdoor ambient range is: 32~122 F., Heating mode outdoor ambient range is: +5~86 F.
  • Wireless Internet worldwide remote access and programming module option (Add module sold separately)

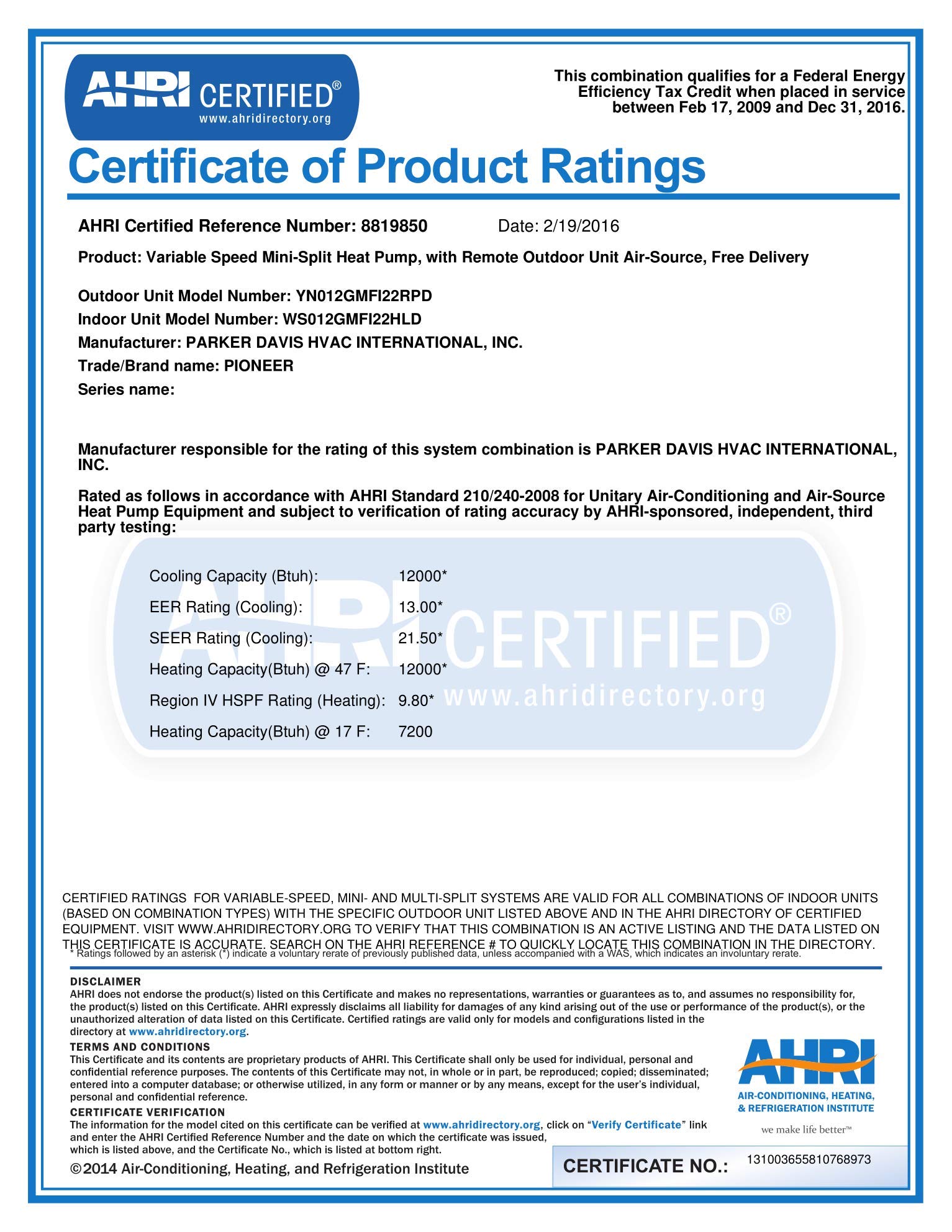

  • All systems are safety tested and approved for safety by ETL. Listed for energy efficiency by AHRI.
  • Unsurpassed support hotline covering installation, use, trouble shooting, warranty and parts issues.
  • Same or next day shipping via freight to anywhere in continental US for arrivals within 3 ~10 days.
  • Pioneer is the best choice of the pros and homeowners with highest ratings for consumer satisfaction
Pioneer, ductless, heat pump, mini split, wall mount

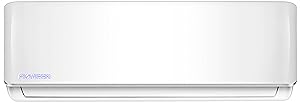

Ductless Indoor Section

Attractive flat front panel and LED display (dimmable), automatic swing air discharge louvers, permanent washable air filters, multi speed fan motor, whisper quiet operation.

Pioneer, ductless, heat pump, mini split, remote

LCD screen wireless remote

Large LCD backlit display, multi function wireless infrared remote controller.

Pioneer, ductless, heat pump, mini split, condenser, compressor

Heat Pump Outdoor Section

Variable speed ultra high efficiency DC inverter compressor. Durable galvanized metal construction with electrostatic epoxy paint. Quiet operation. Single point power entry through outdoor unit. Equipped with low ambient heaters for ultra low ambient heating to -5F.




Pioneer, ductless, heat pump, mini split, pipe kit, installation, accessory, line set

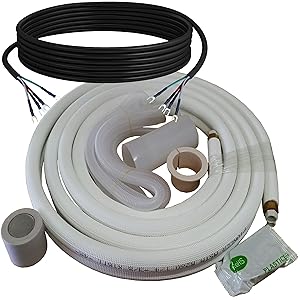

Complete 16' Installation Kit

Pair of insulated copper tubing with flare connections, interconnecting signal wiring, wall sleeve liner and cap, putty, wrapping tape, drain line extension. (Other optional lengths are available in 10', 16', 25' 33', 50').


Description

For full technical specks and other Information, Please refer to the highseer web site. Pioneer newest ways series wall mount mini split ductless Inverter air conditioning and heat pump system. Full system set, containing indoor section, outdoor section, remote controller and standard installation accessories. With a Pioneer ductless mini split type air conditioning system, it is possible to heat or cool any contiguous area, quietly, effectively and efficiently. Pioneer brand ways series ductless split heat pump systems come in a range of capacities; from 9000 BTU/hour to 36000 BTU/hour. Wys is an Inverter system with variable speed compressor, providing very high efficiency levels. Included wireless remote digital controller allows the users easily select among the 4 operating modes; cooling, heating, dehumidification and ventilation. Additionally, an automatic switchover mode is available for totally automatic operation through it's on board computer. A timer function allows the user to set the system to start or stop running at a certain time. Night mode function automatically adopts the temperature settings to the naturally changing body temperature levels during the night. Auto restart function memorizes all settings in case of a temporary power failure and restarts the system to continue running the same way after the power is reconnected. Cloud programmable wireless Internet remote access function is also available. Smart buyers choose Pioneer brand Inverter split systems for their top quality, reliability and performance, available at extremely affordable prices. Air flow capacity: 306 / 212 / 147 CPM
